ATM Machine


Automated Teller Machine (ATM) serves as a primary retail banking transaction channel for bank customers. The convenience of using an ATM rapidly diminishes the moment an ATM machine goes out of service or does not provide the specific ATM services that the customers expect. Do not allow this valuable retail banking transaction channel become a medium for customer grievance.
ZZTL, proudly announce that ZZTL is the Authorized Distributor for world renowned ATM and switch solution provider of GRG Banking. Besides this ZZTL are connected through renowned ATM maintenance OEM, so that any parts for any recognized brand can be supplied with competitive price.
Their current ATMs are compact cash dispenser delivering unparalleled easy usage and maintenance. With ergonomic and extendable features for revenue-generating service, it can change your ATM from a cost center to a profit center. The continuous technological innovation of GRG makes H22NL the unrivalled machine with maximum usability and availability which fit into different scenarios.

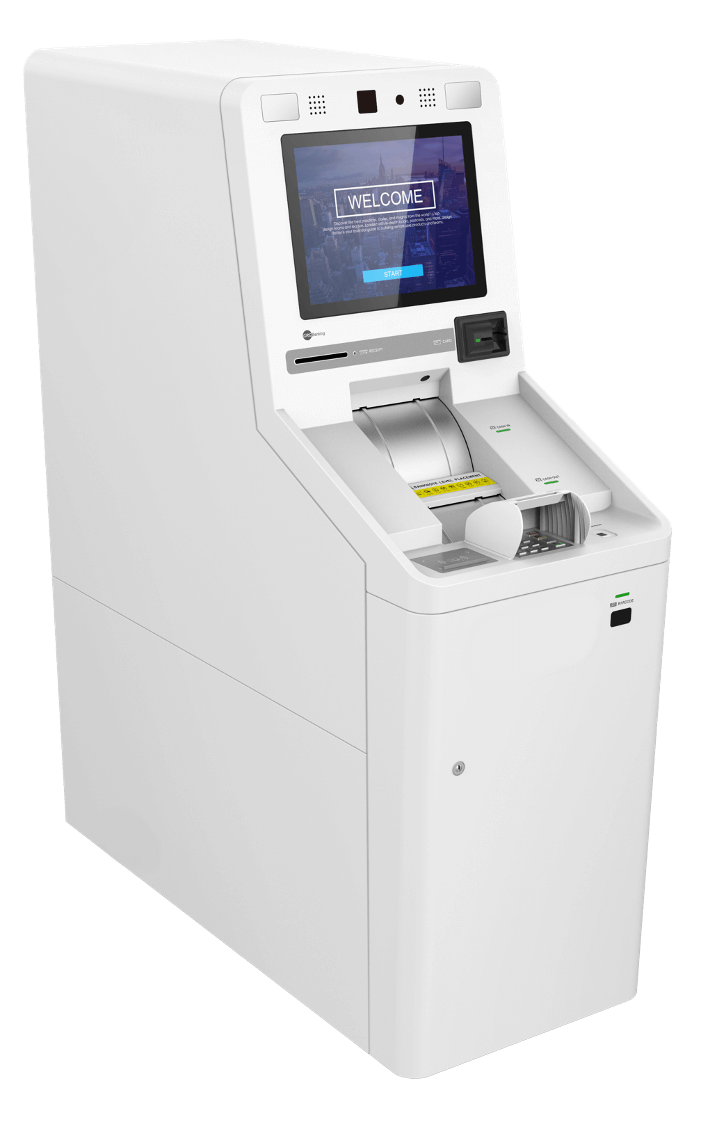

H22N Series(Versatile Cash Dispenser)


The H22N series is comprised of compact cash dispensers delivering unparalleled easy usage and maintenance. With ergonomic and scalable features for revenue-generating service, H22N series can change your ATM from a cost center to a profit center. The continuous technological innovation of GRG makes H22N series the unrivalled machines with maximum usability and availability which fit into different scenarios.
Features
Intrinsic Performance:
With high capacity and reliable performance, H22N series supports two options of cash processing modules according to user actual requirements. It supports maximum 14,000 notes dispensing capacity.

Flexible Scalability:
With the unrivalled level of scalability, contactless card reading, bill payment and other biometric solution features can be flexibly applied on H22N series. They deliver value-added services in many scenarios for banking channel expansion.

Premier Security:
Built-in anti skimming and anti-cash-trapping solutions, wide-range customer awareness mirror, biometric authentication, high resolution security cameras and DVR guarantee a more secure transaction environment for customers.

Optimized Design:
Ergonomic fascia and compact structure, intuitive dispensing features combined with scalable functionalities.
Specifications
Control Unit Intel® Core™ i3/i5/i7 3.3Ghz CPU, 4G RAM (up to 16GB)
500G HDD (Dual HDD support), DVD-RW
Windows® XP / 7 /10
Banknote Processing Unit High-speed bulk dispenser:
-Dispensing speed: 7 notes per second
-Max. 100 notes per transaction
-Up to 4 cassettes
-Cassette capacity: max. 3,500 notes*
Reject capacity: max. 300 notes
Retract capacity: max. 300 notes
OCR for note serial number recognition (opt.)
Customer Interfaces Display: -15’ TFT color LCD with optional touch screen & 2*4 function keys
-Privacy filter (opt.)
-Optional brightness of screen
-Advertisement display light panel (opt.)
Keypad:
-Tactile 4*4 alphanumeric keypad
-PCI compliant EPP
Card Reader Motorized card reader
-DIP card reader (opt.)
-Contactless smart card reader/writer (opt.)
-EMV Level 1 and Level 2 compliant
-Anti-skimming design
-Card return on power failure (opt.)
-Retract card capacity: max 30 cards (opt.)
Receipt printer -80mm 203DPI graphical thermal printer
-Capture and retract capability
Journal printer (opt.):
-High speed dot matrix journal printer
-Thermal printer
1D & 2D barcode scanner (opt.)
High quality public audio and / or headset jack
Maintainance 0.4'' LCD service panel with touch screen (available on rear access model)
Front, rear and side access
Security Physical:
-Electronic lock (opt.)
-Mechanical combination lock
PCI compliant EPP
EMV Level 1 and Level 2 certified
-Electro magnetic interference device
PIN Pad shield
EMV certified
-Electro magnetic interference device
Biometric Authentication:
-Finger print scanner (opt.)
-Facial recognition (opt.)
Customer awareness mirror
DVR surveillance system (opt.)
Transaction image capture for surveillance (opt.)
UPS (opt.)
SecOne for software and network security (opt.)
Sonic alarm modules (opt.)
UL/CEN Safe
Communication Standard TCP-IP connection
Dial-up, wireless connection, SNA/SDLC and X.25 (opt.)
Working Environment Temperature: Indoor: 32°F (0 °C) to 104°F (40°C)
Outdoor: 14°F (-10°C) to 122°F (50°C)
(with optional heating unit)
Relative humidity: 20% to 95% non-condensing
* The actual capacity is subject to the thickness and fitness of local currency.



H22V Series (Multi-function Cash Dispenser)


Inheriting reliable performance and outstanding serviceability of GRG ATMs, the H22V series bulk cash dispensers are designed to optimize deployers' cost and enhance self-service satisfaction. GRGBanking's continuous innovation makes H22V series the unrivalled ATMs to meet the diverse and dynamic market requirements.
Features
Outstanding capacity and reliability:
Maximum bulk cash capacity enlarges by 67%, and dispensing cassette capacity by 17% comparing with mainstream ATM models in the market. Reliable performance maximizes machine uptime.

Advanced and secure solution:
Newly integrated card-reader with comprehensive anti-skimming solutions, electromagnetic interference, and linkage alarm device that raises card security. PCI compliant EPP provides advanced account security for users.

Easy deployment and maintenance:
Special carbon fiber composite and optimized mechanism ensures lighter weight and easier deployment of H22V series. Modular design and various ways of access largely enhances maintenance efficiency.
Specifications
Controlling Unit IPC: Intel H61/H81/Q87, support Core i3/i5/i7 CPU
500G+ HDD (opt. Dual HDD)
Max. 32GB memory, DVD-RW
Embedded PC (opt.): intel ATOM D2550, 500G HDD, 4G memory
Windows® 7 /10
Cash Processing Unit High-speed bulk dispenser:
-Dispensing speed: 7 notes per second
-Max. 100 notes per transaction
-Up to 4 cassettes
-Cassette capacity: max. 3,500 notes*
Reject capacity: max. 300 notes
Retract capacity: max. 300 notes
OCR for note serial number recognition (opt.)
Customer Interface Display:
-15” TFT color LCD touch screen
-Privacy filter (opt.)
-2*4 function keys Keypad:
-4*4 metal encryption PIN pad
-Dust proof/water proof/vandal resistant
-PCI compliant
-EMV certified
Card Reader -Motorized card reader
-Anti-skimming design (opt.)
-Card return on power failure (opt.)
-Card retract (opt.)
-DIP card reader (opt.)
-Contactless smart card reader/writer (opt.)
Receipt Printer -Graphic thermal receipt printer
-Capture and retract capability
Journal printer (opt.) -High speed dot matrix journal printer
-Thermal printer
Security Physical: -Mechanical combination lock
-Electronic lock (opt.)
PCI compliant EPP
EMV Level 1 and Level 2 certified
-Electro magnetic interference device
PIN Pad shield
Biometric Authentication:
-Finger vein reader (opt.)
-Finger print scanner (opt.)
-Facial recognition (opt.)
Maintenance 10" LCD service panel with touch screen on TTW type
Front, rear and side access
Working Environment Temperature: Indoor: 32℉(0 ℃) to 104℉(40℃);
Outdoor: -31℉(-35℃) to 122℉(50℃) (with optional heating unit)
Relative humidity: 20% to 95% non-condensing
